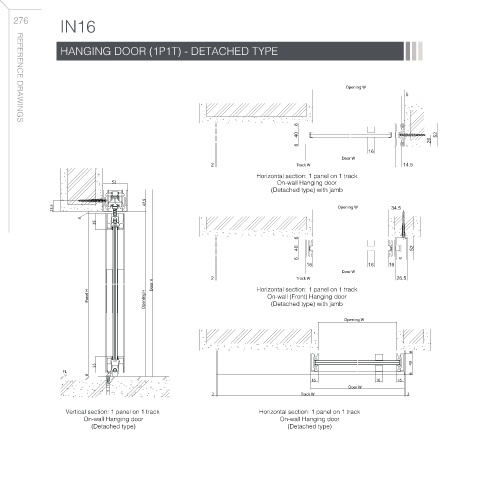

HANGING DOOR (1P1T) - DETACHED TYPE

Opening W
5

REFERENCE DRAWINGS
6
40 52
26
6
16
Door W
2 Track W 14.5
Horizontal section: 1 panel on 1 track
52 On-wall Hanging door
(Detached type) with jamb
47.5
23.5 Opening W 34.5

4
35

6
40 52
6
16 16 16
Door W
2 Track W 26.5
Door H Horizontal section: 1 panel on 1 track
Panel H Opening H On-wall (Front) Hanging door
(Detached type) with jamb

Opening W

6

40
35
FL
8 6
16 16 16
Door W
2 Track W 2

Vertical section: 1 panel on 1 track Horizontal section: 1 panel on 1 track
On-wall Hanging door On-wall Hanging door
(Detached type) (Detached type)
