WE 40

SLIDING WINDOW

1.5 41
28

5
24.7 30
34

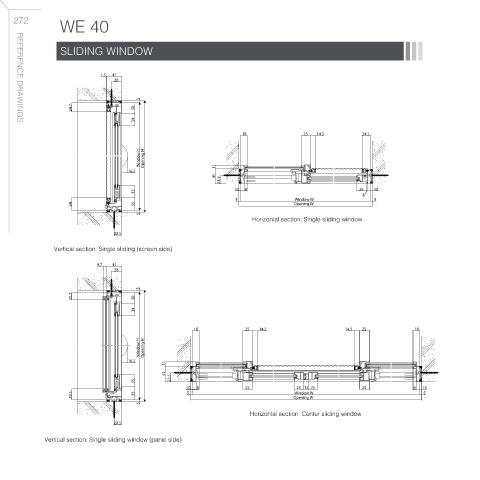

REFERENCE DRAWINGS
18 25 14.5 24.5

Window H Opening H

16.2 11
41
23.5
10 8 26 10
33
3
5 Window W 5
34 35 Opening W
5
Horizontal section: Single sliding window

20.5

Vertical section: Single sliding (screen side)

9.7 41
28

5
20.2 30

34

18 25 14.5 14.5 25 18
Window H Opening H

16.2
11
41
33 23.5
10 8 25 25 12 25 25 8 10
Window W
29.5 35 5 Opening W 5
5
Horizontal section: Center sliding window
20.5

Vertical section: Single sliding window (panel side)
