IN16




                     HANGING DOOR (4P2T) - SYNCHRONIZED TYPE




                                98
                                46    26




                                                5


                    52
                  6

                       35











                                                Door H  Opening H
                    Panel H



                                                                                                   Opening W
                                                                          Panel W
                                                                    16               16                                  16               16

                                                           6
                                                           40
                                                           6
                       35                                  40
                FL
                    8                                      6
                                                                                     16         16            16         16

                                                                  5                                Door,Track W                              5

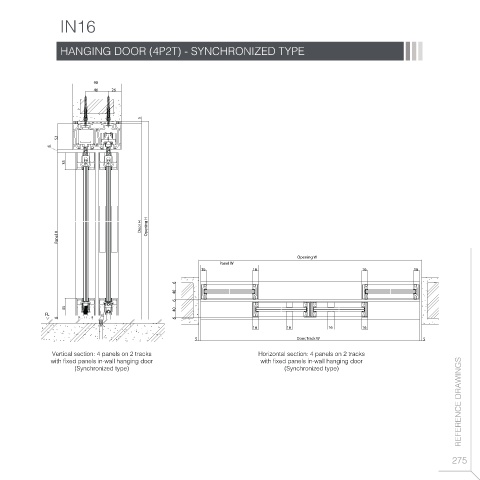

                  Vertical section: 4 panels on 2 tracks                              Horizontal section: 4 panels on 2 tracks
                                                                                                                                                         REFERENCE DRAWINGS
                  with fixed panels in-wall hanging door                                with fixed panels in-wall hanging door
                          (Synchronized type)                                                  (Synchronized type)
