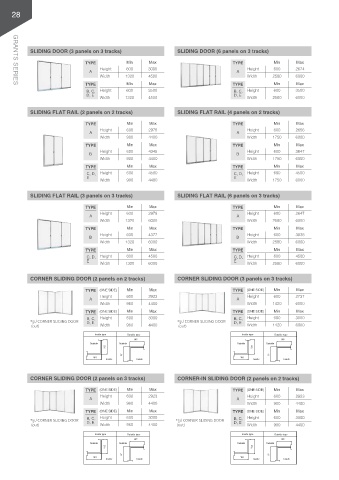

Page 28 - B2C Catalog 2025

28

SLIDING DOOR (3 panels on 3 tracks) SLIDING DOOR (6 panels on 3 tracks)

TYPE Min Max TYPE Min Max
Height 600 3000 Height 600 2674
A A
Width 1320 4500 Width 2580 6000
TYPE Min Max TYPE Min Max
GRANTS SERIES
B, C, Height 600 3500 B, C, Height 600 3500
D, E D, E
Width 1320 4500 Width 2580 6000
SLIDING FLAT RAIL (2 panels on 2 tracks) SLIDING FLAT RAIL (4 panels on 2 tracks)

TYPE Min Max TYPE Min Max
Height 600 2975 Height 600 2656
A A
Width 900 4400 Width 1750 6000
TYPE Min Max TYPE Min Max
Height 600 4345 Height 600 3847
B B
Width 900 4400 Width 1750 6000
TYPE Min Max TYPE Min Max
C, D, Height 600 4500 C, D, Height 600 4500
E E
Width 900 4400 Width 1750 6000
SLIDING FLAT RAIL (3 panels on 3 tracks) SLIDING FLAT RAIL (6 panels on 3 tracks)

TYPE Min Max TYPE Min Max
Height 600 2978 Height 600 2647
A A
Width 1320 6000 Width 2580 6000
TYPE Min Max TYPE Min Max
Height 600 4377 Height 600 3838
B B
Width 1320 6000 Width 2580 6000
TYPE Min Max TYPE Min Max
C, D, Height 600 4500 C, D, Height 600 4500
E E
Width 1320 6000 Width 2580 6000
CORNER SLIDING DOOR (2 panels on 2 tracks) CORNER SLIDING DOOR (3 panels on 3 tracks)

TYPE (ONE SIDE) Min Max TYPE (ONE SIDE) Min Max
Height 600 2923 Height 600 2737
A A
Width 960 4400 Width 1420 6000
TYPE (ONE SIDE) Min Max TYPE (ONE SIDE) Min Max
B, C, Height 600 3000 B, C, Height 600 3000
*รูป CORNER SLIDING DOOR D, E *รูป CORNER SLIDING DOOR D, E
(out) Width 960 4400 (out) Width 1420 6000

CORNER SLIDING DOOR (2 panels on 3 tracks) CORNER-IN SLIDING DOOR (2 panels on 2 tracks)

TYPE (ONE SIDE) Min Max TYPE (ONE SIDE) Min Max
Height 600 2923 Height 600 2923
A A
Width 960 4400 Width 900 4400
TYPE (ONE SIDE) Min Max TYPE (ONE SIDE) Min Max
*รูป CORNER SLIDING DOOR B, C, Height 600 3000 *รูป CORNER SLIDING DOOR B, C, Height 600 3000
D, E
D, E
(out) Width 960 4400 (out) Width 900 4400
