GIESTA

OUT-SWING DOOR

101.6 40.4
21

Only in case of double leaf & with side light
5
25 25
5
REFERENCE DRAWINGS
16.5

Door H Opening H
Dh

1.6 40 13.5

7
50
25
Only in case of double leaf & with side light 5

34.8

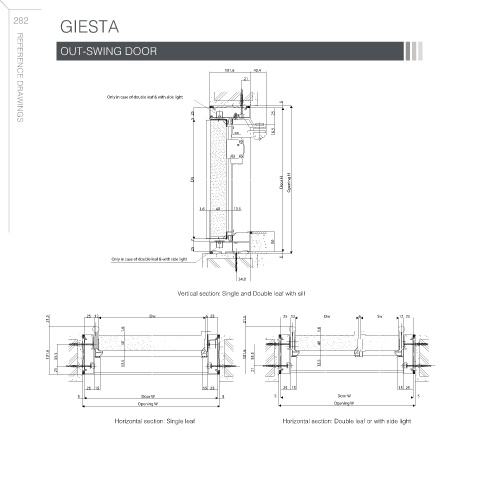

Vertical section: Single and Double leaf with sill

21.5 25 12 Dw 6 25 21.5 25 12 Dw 6 Sw 12 25

1.6 1.6
40 40
101.6 55.5 101.6 55.5
13.5 13.5
21 21

25 15 15 25 25 15 15 25
5 Door W 5 5 Door W 5
Opening W Opening W

Horizontal section: Single leaf Horizontal section: Double leaf or with side light
