WE PLUS

TRANSOM & MULLION

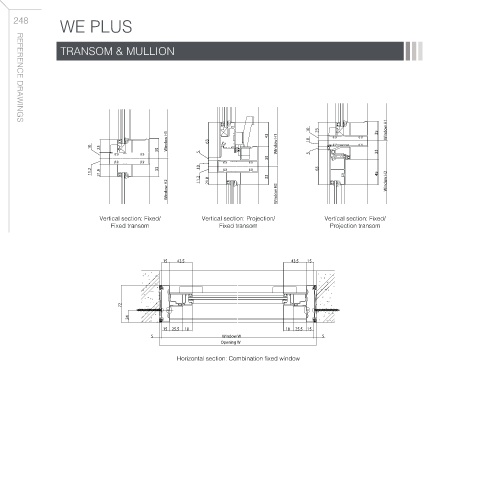

REFERENCE DRAWINGS
10 23 35 Window H1
Window H1 63 43 10

10 23 Window H1
35
5 5 33
35
11.2 21.8 33 10 11.2 21.8 33 63 45 Window H2
Window H2 Window H2

Vertical section: Fixed/ Vertical section: Projection/ Vertical section: Fixed/
Fixed transom Fixed transom Projection transom

15 43.5 43.5 15

72
24

15 25.5 18 18 25.5 15
5 Window W 5
Opening W

Horizontal section: Combination fixed window
