ATIS

OUT-SWING DOOR

88
50
10 8 34 109.6 6 20 10

REFERENCE DRAWINGS
13.5 10 64.3
5 51.5
33 16.3
88
50

48.3

28 14 100.6 35
10 10
Window W
300 10 Opening W 10

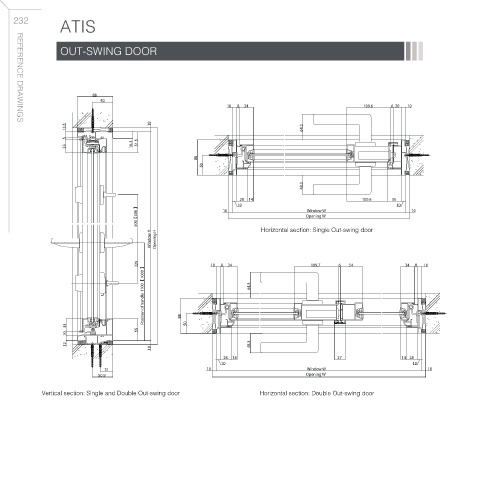

500 Horizontal section: Single Out-swing door

Window H Opening H

329 10 8 34 109.7 6 54 34 8 10
1000 64.3
Position of handle 1100

33 88 50
55
10
12 48.3
10
28 14 27 14 28
10 10
31 10 Window W 10
50.9 Opening W

Vertical section: Single and Double Out-swing door Horizontal section: Double Out-swing door
