ATIS

SLIDING (3P3T, 6P3T) WITH OUTSIDE INSECT SCREEN

131.5
44

10

24
35
8
55 40.5

Window H Opening H

7.6 60 60 40 52

57.5 45 49.5 131.5
78.5 53

10 28
55 10
37 7.5 40 40
10 Window W
Opening W
10

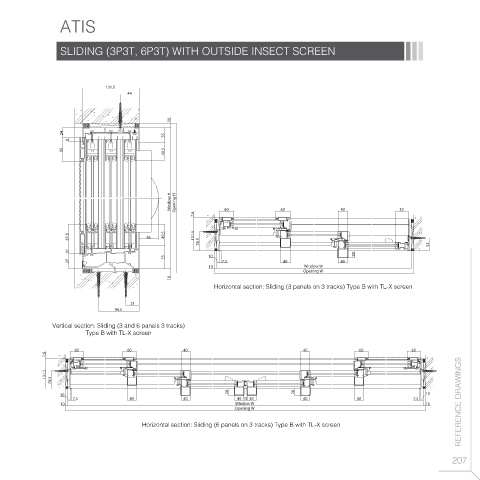

Horizontal section: Sliding (3 panels on 3 tracks) Type B with TL-X screen

31
94.5

Vertical section: Sliding (3 and 6 panels 3 tracks)
Type B with TL-X screen

60 60 40 40 60 60
7.6
REFERENCE DRAWINGS
131.5
78.5

28 28 10
10
7.5 40 40 40 15 40 40 40 7.5
10 Window W 10
Opening W
Horizontal section: Sliding (6 panels on 3 tracks) Type B with TL-X screen
