REFERENCE DRAWINGS
28 28
10 7.5 40 40 15 40 40 7.5 10
10 Window W 10
Opening W

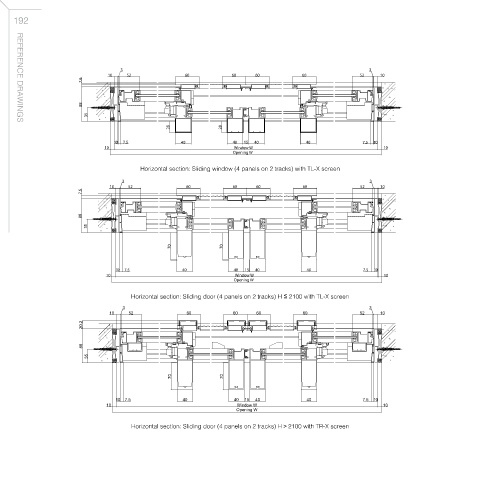

Horizontal section: Sliding window (4 panels on 2 tracks) with TL-X screen
3 3
10 52 60 60 60 60 52 10
7.6
88
35
70 70
10 7.5 40 40 15 40 40 7.5 10
10 Window W 10
Opening W
Horizontal section: Sliding door (4 panels on 2 tracks) H 2100 with TL-X screen
3 3
10 52 60 60 60 60 52 10
20.2
88
35
70 70
10 7.5 40 40 15 40 40 7.5 10
10 Window W 10
Opening W
Horizontal section: Sliding door (4 panels on 2 tracks) H 2100 with TR-X screen
