GRANTS PLUS
TRANSOM & MULLION
Window H1 Window H1 Window H1
30 32
30
17 7

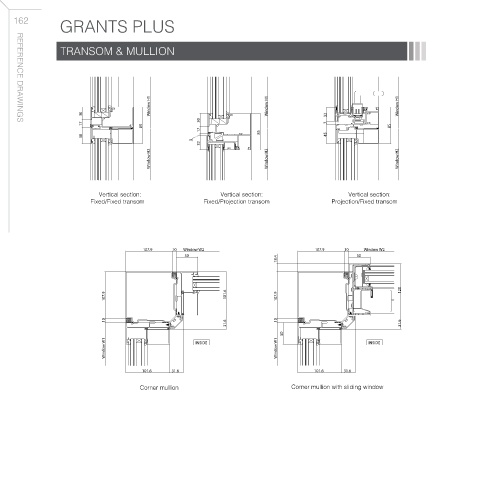

REFERENCE DRAWINGS
85 85
17 85
38 45
5
32
Window H2 Window H2 Window H2
Vertical section: Vertical section: Vertical section:
Fixed/Fixed transom Fixed/Projection transom Projection/Fixed transom
107.9 10 Window W2 107.9 10 Window W2
50 50
18.4
107.9 101.6 107.9 120
10 10
31.6 31.6
50
Window W1 INSIDE Window W1 INSIDE
101.6 31.6 101.6 31.6
Corner mullion Corner mullion with sliding window
