GRANTS PLUS

AWNING WINDOW

101.6
50

15
12
5 50
32
REFERENCE DRAWINGS

Window H Opening H

8.3
36.6

32
50
7
10 15

40
61.5

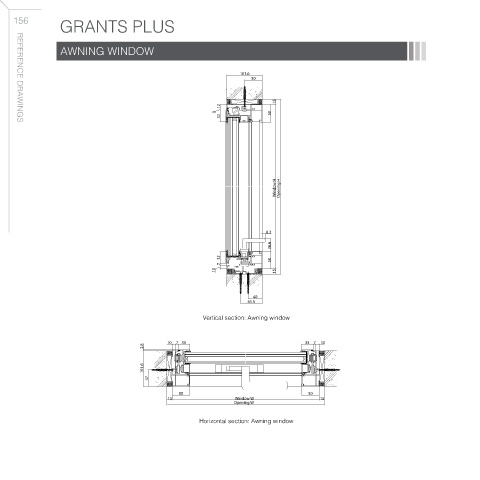

Vertical section: Awning window

10 7 33 33 7 10
2.8

101.6

47

50 50
15 Window W 15
Opening W

Horizontal section: Awning window
